CNC Plasma Cutting Table

Profile Cutting Systems offers a range of wet and dry plasma cutting tables. Since the advent of High Definition plasma cutting technology, dry cutting tables have gained popularity as opposed to wet cutting tables, which were once the standard for plasma cutting. PCS has a selection of premium plasma cutting tables that are tailored to the needs and requirements of professionals across multiple industries. Below are some advantages and disadvantages of each CNC plasma table design.

DRY PLASMA CUTTER TABLES:

PRO’S

  • Best cutting quality
  • Cleaner working area
  • Always dry working surface
  • No chemicals additive required
  • Less rust on parts
  • Ease of  part recovery after cutting

CON’S

  • Initial cost of Fume Extraction System
  • Running cost of Fume Extraction System
  • Stock and replacement of filters

PCS offers two types of DRY CNC plasma table:

1) PCS STANDARD DRY
2) PCS HEAVY DUTY DRY

PCS DRY cutting tables are electronically ZONED for maximum fume extraction efficiency. Individual zones are opened according to the machine’s X/Y co-ordinates – No need for mechanical strikers and lever type door actuation.

The HEAVY DUTY DRY plasma table is recommended for heavy drilling applications as it has extra supports connecting the slat trays directly to the concrete floor, thereby minimising table vibrations. Contact PCS today to discuss your cutting table requirement.

Burn Table

PCS offers many wet or dry alternatives for swarf and fume extraction on our high-speed drilling machine range such as the PCS MHB and PCS BHB.

PCS Plasma Cutting Tables Diagram

PCS CNC Plasma Cutting Table

PCS has developed an app that allows the burn table machine operator to customise the zoned fume extraction doors. Zones can be ‘overlapped’, and off delays can be input via the CNC controller.

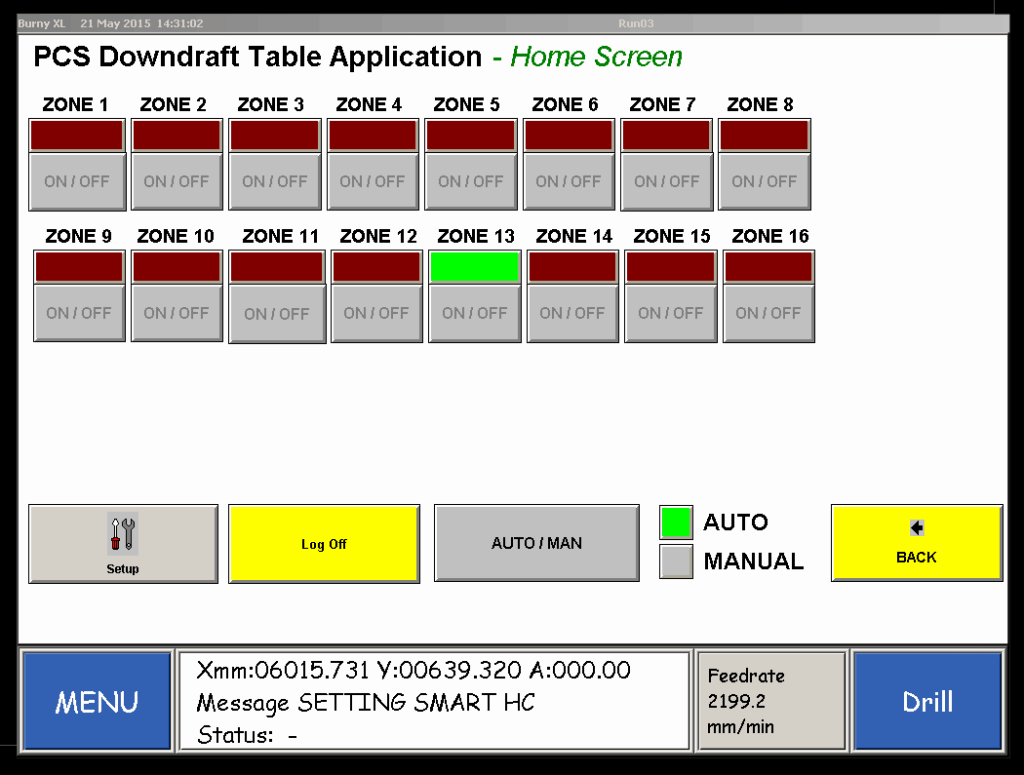

CNC Plasma Cutting Table Home Screen Application

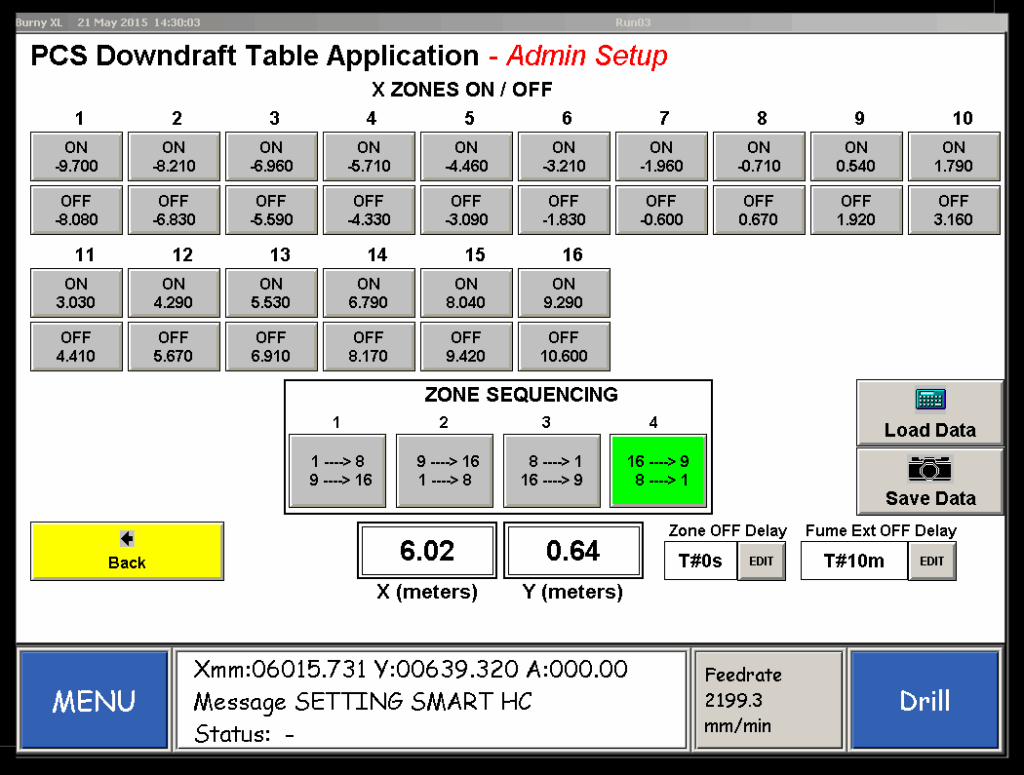

CNC Plasma Cutting Table Admin Screen Application

WET PLASMA CUTTER TABLES:

PRO’S

  • Low initial cost
  • Lower ongoing operating costs
  • Less maintenance
  • Best drilling performance
  • Reduces heat distortion in parts
  • Increases life of cutting slats

CON’S

  • Cut Quality depending on processes
  • Dirtier working environment
  • Increased surface rust on parts
  • Part drop-outs can be difficult to recover
  • Explosive hazard when cutting Aluminum
  • Cost of anti-rust and coolant chemical additives.

PCS offers a variety of WET CNC plasma tables, including:

1) PCS STANDARD WET (Static)
2) PCS STANDARD WET (Raise/Lower)
3) PCS HEAVY DUTY WET (Raise/Lower)

The HEAVY DUTY WET plasma table is recommended for heavy drilling applications, with extra supports connecting the slat trays directly to the concrete floor, thereby minimising table vibrations. Contact PCS today to discuss your cutting table requirements.
